FastAPI Tutorial Part 19: OpenAPI and API Documentation

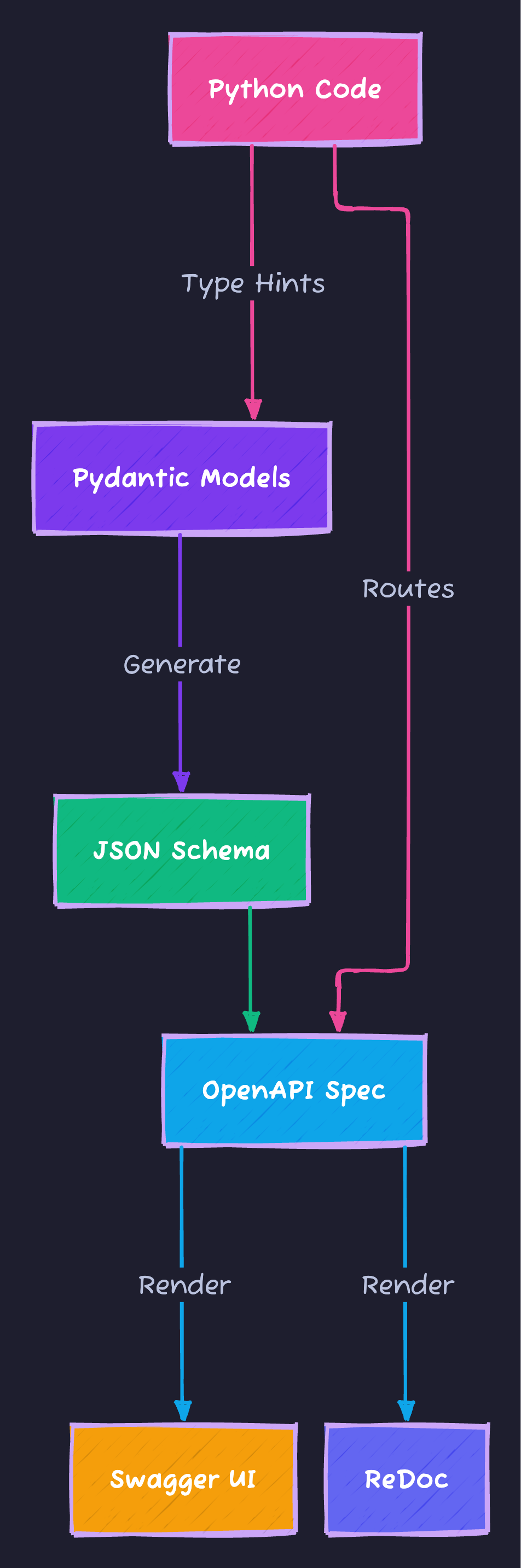

FastAPI Auto-Documentation

FastAPI automatically generates OpenAPI documentation at:

• Swagger UI: /docs
• ReDoc: /redoc
• OpenAPI JSON: /openapi.json

Customizing App Documentation

from fastapi import FastAPI

app = FastAPI(
    title="My API",
    description="""
    ## Overview
    This API provides access to user and product data.

    ## Features
    * User management
    * Product catalog
    * Order processing
    """,
    version="1.0.0",
    terms_of_service="https://example.com/terms",
    contact={
        "name": "API Support",
        "url": "https://example.com/support",
        "email": "support@example.com"
    },
    license_info={
        "name": "MIT",
        "url": "https://opensource.org/licenses/MIT"
    }
)

Endpoint Documentation

from fastapi import FastAPI, Path, Query
from pydantic import BaseModel, Field

class Item(BaseModel):
    name: str = Field(
        example="Widget",
        description="The name of the item"
    )
    price: float = Field(
        gt=0,
        example=29.99,
        description="Price in USD"
    )

    class Config:
        json_schema_extra = {
            "example": {
                "name": "Premium Widget",
                "price": 49.99
            }
        }

@app.post(
    "/items",
    response_model=Item,
    summary="Create an item",
    description="Create a new item with name and price.",
    response_description="The created item",
    tags=["Items"],
    status_code=201
)
def create_item(item: Item):
    """
    Create an item with all the information:

    - **name**: required, unique name
    - **price**: required, must be positive
    """
    return item

Tags and Grouping

tags_metadata = [
    {
        "name": "Users",
        "description": "User management operations"
    },
    {
        "name": "Items",
        "description": "Item CRUD operations"
    }
]

app = FastAPI(openapi_tags=tags_metadata)

@app.get("/users", tags=["Users"])
def list_users():
    pass

@app.get("/items", tags=["Items"])
def list_items():
    pass

Response Examples

@app.get(
    "/items/{item_id}",
    responses={
        200: {
            "description": "Item found",
            "content": {
                "application/json": {
                    "example": {"id": 1, "name": "Widget", "price": 9.99}
                }
            }
        },
        404: {
            "description": "Item not found",
            "content": {
                "application/json": {
                    "example": {"detail": "Item not found"}
                }
            }
        }
    }
)
def get_item(item_id: int):
    pass

Hiding Endpoints

# Hide from documentation
@app.get("/internal", include_in_schema=False)
def internal_endpoint():
    return {"internal": True}

# Disable docs in production
app = FastAPI(
    docs_url=None if PRODUCTION else "/docs",
    redoc_url=None if PRODUCTION else "/redoc"
)

Custom OpenAPI Schema

from fastapi.openapi.utils import get_openapi

def custom_openapi():
    if app.openapi_schema:
        return app.openapi_schema

    openapi_schema = get_openapi(
        title="Custom API",
        version="1.0.0",
        description="Custom description",
        routes=app.routes
    )

    # Add custom fields
    openapi_schema["info"]["x-logo"] = {
        "url": "https://example.com/logo.png"
    }

    app.openapi_schema = openapi_schema
    return app.openapi_schema

app.openapi = custom_openapi

Summary

Feature	Method
App metadata	FastAPI() parameters
Endpoint docs	Decorator parameters
Examples	Pydantic Field()
Grouping	Tags
Custom schema	Override openapi()

Next Steps

In Part 20, we’ll build a Complete Production API Project - putting everything together.
