Service Mesh with Istio: Complete Kubernetes Guide

What is Istio?

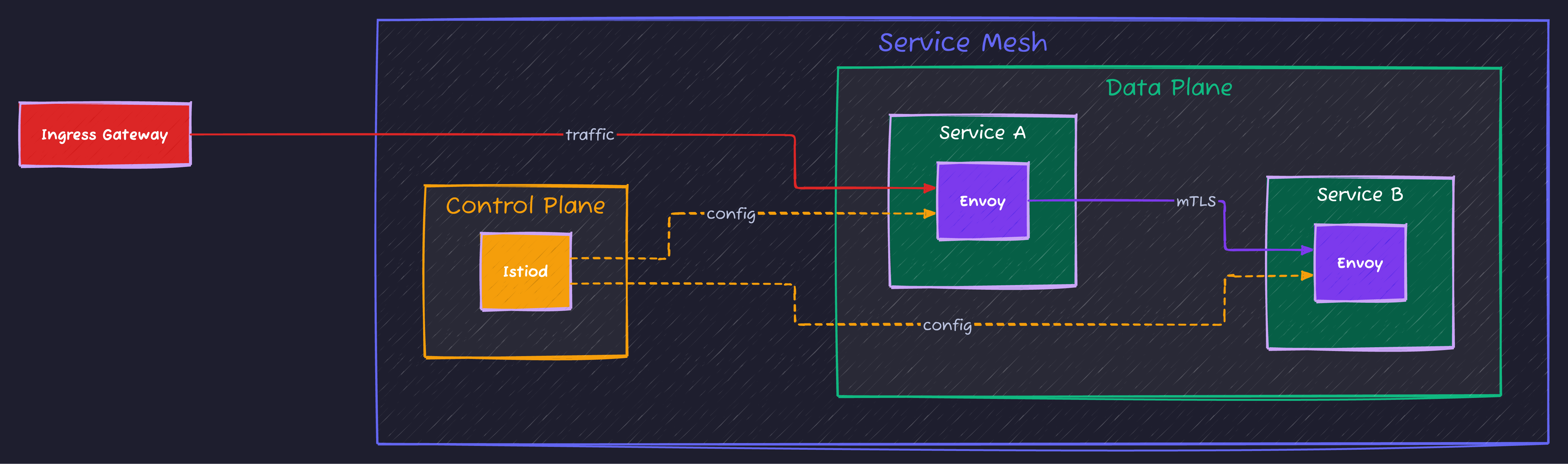

Istio is a service mesh that provides traffic management, security, and observability for microservices. It handles cross-cutting concerns without changing application code.

Service Mesh Benefits

Feature	Description
Traffic Management	Routing, load balancing
Security	mTLS, authorization
Observability	Metrics, tracing
Resilience	Retries, circuit breakers

Getting Started

Installation

# Download Istio
curl -L https://istio.io/downloadIstio | sh -
cd istio-*
export PATH=$PWD/bin:$PATH

# Install Istio
istioctl install --set profile=demo -y

# Enable sidecar injection
kubectl label namespace default istio-injection=enabled

# Verify installation
kubectl get pods -n istio-system
istioctl verify-install

Install Addons

# Prometheus, Grafana, Kiali, Jaeger
kubectl apply -f samples/addons

# Access dashboards
istioctl dashboard kiali
istioctl dashboard grafana
istioctl dashboard jaeger

Traffic Management

Virtual Services

apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  name: my-service
spec:
  hosts:
    - my-service
  http:
    - match:
        - headers:
            user-agent:
              prefix: "Mozilla"
      route:
        - destination:
            host: my-service
            subset: v2
    - route:
        - destination:
            host: my-service
            subset: v1

Destination Rules

apiVersion: networking.istio.io/v1beta1
kind: DestinationRule
metadata:
  name: my-service
spec:
  host: my-service
  trafficPolicy:
    connectionPool:
      tcp:
        maxConnections: 100
      http:
        h2UpgradePolicy: UPGRADE
        http1MaxPendingRequests: 100
        http2MaxRequests: 1000
    loadBalancer:
      simple: ROUND_ROBIN
  subsets:
    - name: v1
      labels:
        version: v1
    - name: v2
      labels:
        version: v2
      trafficPolicy:
        loadBalancer:
          simple: LEAST_CONN

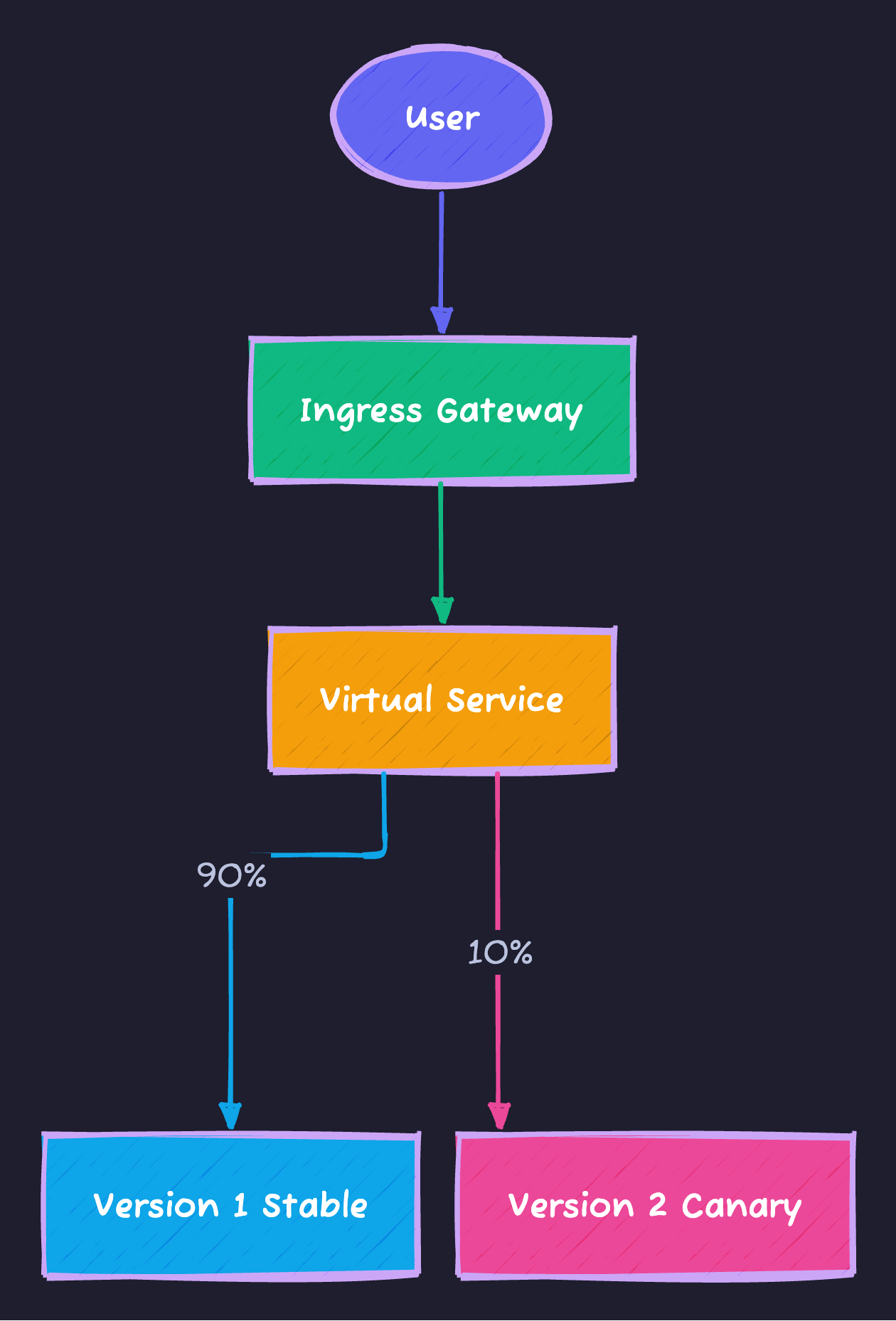

Canary Deployments

apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  name: my-service
spec:
  hosts:
    - my-service
  http:
    - route:
        - destination:
            host: my-service
            subset: v1
          weight: 90
        - destination:
            host: my-service
            subset: v2
          weight: 10

A/B Testing

apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  name: my-service
spec:
  hosts:
    - my-service
  http:
    - match:
        - headers:
            x-user-type:
              exact: "beta"
      route:
        - destination:
            host: my-service
            subset: v2
    - route:
        - destination:
            host: my-service
            subset: v1

Request Routing

apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  name: my-service
spec:
  hosts:
    - my-service
  http:
    # Route by URI
    - match:
        - uri:
            prefix: "/api/v2"
      route:
        - destination:
            host: my-service
            subset: v2

    # Route by header
    - match:
        - headers:
            end-user:
              exact: "jason"
      route:
        - destination:
            host: my-service
            subset: v2

    # Default route
    - route:
        - destination:
            host: my-service
            subset: v1

Resilience

Timeouts and Retries

apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  name: my-service
spec:
  hosts:
    - my-service
  http:
    - route:
        - destination:
            host: my-service
      timeout: 10s
      retries:
        attempts: 3
        perTryTimeout: 3s
        retryOn: gateway-error,connect-failure,refused-stream

Circuit Breaker

apiVersion: networking.istio.io/v1beta1
kind: DestinationRule
metadata:
  name: my-service
spec:
  host: my-service
  trafficPolicy:
    outlierDetection:
      consecutive5xxErrors: 5
      interval: 30s
      baseEjectionTime: 30s
      maxEjectionPercent: 100
      minHealthPercent: 0

Fault Injection

apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  name: my-service
spec:
  hosts:
    - my-service
  http:
    - fault:
        delay:
          percentage:
            value: 10
          fixedDelay: 5s
        abort:
          percentage:
            value: 5
          httpStatus: 500
      route:
        - destination:
            host: my-service

Rate Limiting

apiVersion: networking.istio.io/v1beta1
kind: EnvoyFilter
metadata:
  name: rate-limit
spec:
  workloadSelector:
    labels:
      app: my-service
  configPatches:
    - applyTo: HTTP_FILTER
      match:
        context: SIDECAR_INBOUND
        listener:
          filterChain:
            filter:
              name: envoy.filters.network.http_connection_manager
      patch:
        operation: INSERT_BEFORE
        value:
          name: envoy.filters.http.local_ratelimit
          typed_config:
            "@type": type.googleapis.com/udpa.type.v1.TypedStruct
            type_url: type.googleapis.com/envoy.extensions.filters.http.local_ratelimit.v3.LocalRateLimit
            value:
              stat_prefix: http_local_rate_limiter
              token_bucket:
                max_tokens: 100
                tokens_per_fill: 100
                fill_interval: 60s
              filter_enabled:
                runtime_key: local_rate_limit_enabled
                default_value:
                  numerator: 100
                  denominator: HUNDRED

Security

Mutual TLS

# Enable strict mTLS
apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
  name: default
  namespace: istio-system
spec:
  mtls:
    mode: STRICT

# Permissive mode for specific namespace
apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
  name: default
  namespace: legacy
spec:
  mtls:
    mode: PERMISSIVE

Authorization Policies

# Deny all by default
apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
  name: deny-all
  namespace: default
spec:
  {}

# Allow specific access
apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
  name: allow-frontend
  namespace: default
spec:
  selector:
    matchLabels:
      app: backend
  action: ALLOW
  rules:
    - from:
        - source:
            principals: ["cluster.local/ns/default/sa/frontend"]
      to:
        - operation:
            methods: ["GET", "POST"]
            paths: ["/api/*"]

JWT Authentication

apiVersion: security.istio.io/v1beta1
kind: RequestAuthentication
metadata:
  name: jwt-auth
  namespace: default
spec:
  selector:
    matchLabels:
      app: my-service
  jwtRules:
    - issuer: "https://auth.example.com"
      jwksUri: "https://auth.example.com/.well-known/jwks.json"
      audiences:
        - "my-service"
      forwardOriginalToken: true

apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
  name: require-jwt
  namespace: default
spec:
  selector:
    matchLabels:
      app: my-service
  action: ALLOW
  rules:
    - from:
        - source:
            requestPrincipals: ["https://auth.example.com/*"]
      when:
        - key: request.auth.claims[groups]
          values: ["admin"]

Ingress Gateway

apiVersion: networking.istio.io/v1beta1
kind: Gateway
metadata:
  name: my-gateway
spec:
  selector:
    istio: ingressgateway
  servers:
    - port:
        number: 80
        name: http
        protocol: HTTP
      hosts:
        - "*.example.com"
    - port:
        number: 443
        name: https
        protocol: HTTPS
      tls:
        mode: SIMPLE
        credentialName: example-credential
      hosts:
        - "*.example.com"

apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  name: my-service
spec:
  hosts:
    - "app.example.com"
  gateways:
    - my-gateway
  http:
    - match:
        - uri:
            prefix: "/api"
      route:
        - destination:
            host: api-service
            port:
              number: 8080
    - route:
        - destination:
            host: web-service
            port:
              number: 80

Observability

Distributed Tracing

# Enable tracing
apiVersion: install.istio.io/v1alpha1
kind: IstioOperator
spec:
  meshConfig:
    enableTracing: true
    defaultConfig:
      tracing:
        sampling: 100.0
        zipkin:
          address: zipkin.istio-system:9411

Custom Metrics

apiVersion: telemetry.istio.io/v1alpha1
kind: Telemetry
metadata:
  name: namespace-metrics
  namespace: default
spec:
  metrics:
    - providers:
        - name: prometheus
      overrides:
        - match:
            metric: REQUEST_COUNT
          tagOverrides:
            response_code:
              operation: UPSERT

Access Logging

apiVersion: telemetry.istio.io/v1alpha1
kind: Telemetry
metadata:
  name: mesh-default
  namespace: istio-system
spec:
  accessLogging:
    - providers:
        - name: envoy

Debugging

# Check proxy status
istioctl proxy-status

# Analyze configuration
istioctl analyze

# Debug specific pod
istioctl proxy-config cluster <pod-name>
istioctl proxy-config route <pod-name>
istioctl proxy-config listener <pod-name>

# Check Envoy config
istioctl proxy-config dump <pod-name>

# View metrics
kubectl exec -it <pod-name> -c istio-proxy -- pilot-agent request GET stats

Summary

Feature	Resource
Routing	VirtualService
Load Balancing	DestinationRule
Gateway	Gateway
mTLS	PeerAuthentication
Authorization	AuthorizationPolicy
Observability	Telemetry

Istio provides comprehensive service mesh capabilities for securing and managing microservices on Kubernetes.
