Spring Security Architecture: Complete Guide to How Security Works

Why Understand Spring Security Architecture?

Most developers copy-paste security configurations without understanding how they work. This leads to security vulnerabilities and debugging nightmares. Understanding the architecture lets you:

Debug authentication issues quickly
Customize security for complex requirements
Avoid common security pitfalls
Build secure applications with confidence

The Big Picture

Spring Security is a filter-based framework. Every HTTP request passes through a chain of security filters before reaching your controller.

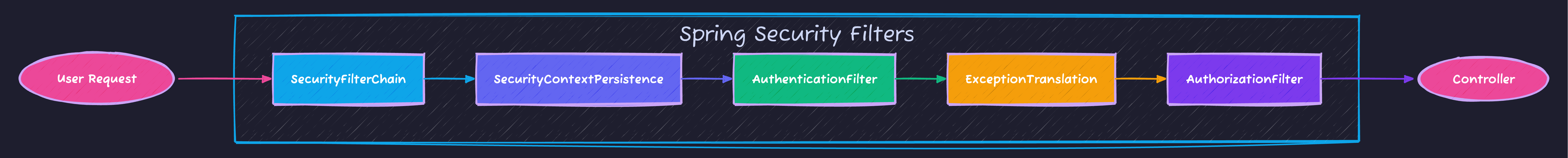

Spring Security Filter Chain Architecture

Core Components

1. SecurityFilterChain

The backbone of Spring Security. It’s an ordered list of filters that process every request.

@Configuration
@EnableWebSecurity
public class SecurityConfig {

    @Bean
    public SecurityFilterChain filterChain(HttpSecurity http) throws Exception {
        http
            .csrf(csrf -> csrf.disable())
            .authorizeHttpRequests(auth -> auth
                .requestMatchers("/public/**").permitAll()
                .requestMatchers("/admin/**").hasRole("ADMIN")
                .anyRequest().authenticated()
            )
            .httpBasic(Customizer.withDefaults());

        return http.build();
    }
}

2. SecurityContext & SecurityContextHolder

The SecurityContext holds the currently authenticated user. SecurityContextHolder provides access to it from anywhere in your application.

// Get current authenticated user anywhere in your code
Authentication authentication = SecurityContextHolder.getContext().getAuthentication();

String username = authentication.getName();
Collection<? extends GrantedAuthority> authorities = authentication.getAuthorities();
Object principal = authentication.getPrincipal();

// Check if user is authenticated
boolean isAuthenticated = authentication.isAuthenticated();

SecurityContext Storage Strategies

Strategy	Use Case
`MODE_THREADLOCAL`	Default. One context per thread.
`MODE_INHERITABLETHREADLOCAL`	Child threads inherit parent’s context
`MODE_GLOBAL`	Single context for entire application

// Set strategy (usually in main class)
SecurityContextHolder.setStrategyName(SecurityContextHolder.MODE_INHERITABLETHREADLOCAL);

3. Authentication Object

The Authentication interface represents both the token for authentication request and the authenticated principal.

public interface Authentication extends Principal, Serializable {

    // Authorities granted to the principal
    Collection<? extends GrantedAuthority> getAuthorities();

    // Credentials (usually password, cleared after authentication)
    Object getCredentials();

    // Additional details (IP address, session ID, etc.)
    Object getDetails();

    // The principal (usually UserDetails)
    Object getPrincipal();

    // Whether the user is authenticated
    boolean isAuthenticated();

    void setAuthenticated(boolean isAuthenticated);
}

Common Authentication Implementations

Class	Use Case
`UsernamePasswordAuthenticationToken`	Form login, basic auth
`JwtAuthenticationToken`	JWT-based authentication
`OAuth2AuthenticationToken`	OAuth2/OpenID Connect
`AnonymousAuthenticationToken`	Unauthenticated users
`RememberMeAuthenticationToken`	Remember-me functionality

4. AuthenticationManager

The API for authentication. It takes an Authentication request and returns a fully authenticated Authentication object.

public interface AuthenticationManager {
    Authentication authenticate(Authentication authentication)
        throws AuthenticationException;
}

5. AuthenticationProvider

The actual authentication logic. AuthenticationManager delegates to one or more AuthenticationProvider implementations.

public interface AuthenticationProvider {

    // Perform authentication
    Authentication authenticate(Authentication authentication)
        throws AuthenticationException;

    // Can this provider handle this authentication type?
    boolean supports(Class<?> authentication);
}

Custom AuthenticationProvider Example

@Component
public class CustomAuthenticationProvider implements AuthenticationProvider {

    @Autowired
    private UserRepository userRepository;

    @Autowired
    private PasswordEncoder passwordEncoder;

    @Override
    public Authentication authenticate(Authentication authentication)
            throws AuthenticationException {

        String username = authentication.getName();
        String password = authentication.getCredentials().toString();

        User user = userRepository.findByUsername(username)
            .orElseThrow(() -> new BadCredentialsException("User not found"));

        if (!passwordEncoder.matches(password, user.getPassword())) {
            throw new BadCredentialsException("Invalid password");
        }

        if (!user.isEnabled()) {
            throw new DisabledException("User is disabled");
        }

        if (user.isAccountLocked()) {
            throw new LockedException("Account is locked");
        }

        return new UsernamePasswordAuthenticationToken(
            user,
            null,
            user.getAuthorities()
        );
    }

    @Override
    public boolean supports(Class<?> authentication) {
        return UsernamePasswordAuthenticationToken.class
            .isAssignableFrom(authentication);
    }
}

6. UserDetailsService

Loads user-specific data. This is where you connect Spring Security to your user database.

public interface UserDetailsService {
    UserDetails loadUserByUsername(String username)
        throws UsernameNotFoundException;
}

Implementation Example

@Service
@RequiredArgsConstructor
public class CustomUserDetailsService implements UserDetailsService {

    private final UserRepository userRepository;

    @Override
    public UserDetails loadUserByUsername(String username)
            throws UsernameNotFoundException {

        return userRepository.findByUsername(username)
            .orElseThrow(() ->
                new UsernameNotFoundException("User not found: " + username));
    }
}

7. UserDetails

Provides core user information required by Spring Security.

public interface UserDetails extends Serializable {

    Collection<? extends GrantedAuthority> getAuthorities();
    String getPassword();
    String getUsername();
    boolean isAccountNonExpired();
    boolean isAccountNonLocked();
    boolean isCredentialsNonExpired();
    boolean isEnabled();
}

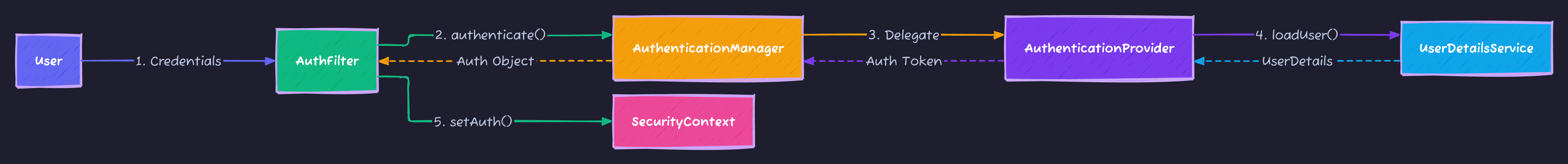

The Authentication Flow

Here’s exactly what happens when a user tries to authenticate:

1. User submits credentials (username/password)
           │
           ▼
2. Authentication Filter creates Authentication token
   (e.g., UsernamePasswordAuthenticationToken)
           │
           ▼
3. AuthenticationManager.authenticate() is called
           │
           ▼
4. AuthenticationManager iterates through AuthenticationProviders
           │
           ▼
5. Matching AuthenticationProvider processes the request
   ├── Loads UserDetails via UserDetailsService
   ├── Validates credentials (password check)
   └── Returns fully authenticated Authentication object
           │
           ▼
6. Authentication stored in SecurityContext
   (SecurityContextHolder.getContext().setAuthentication())
           │
           ▼
7. SecurityContextPersistenceFilter saves context
   (usually to HttpSession)
           │
           ▼
8. Request proceeds to controller

Key Security Filters

Filter Order (Default)

Order	Filter	Purpose
1	`DisableEncodeUrlFilter`	Prevents session ID in URLs
2	`WebAsyncManagerIntegrationFilter`	Async request support
3	`SecurityContextHolderFilter`	Manages SecurityContext
4	`HeaderWriterFilter`	Adds security headers
5	`CorsFilter`	CORS handling
6	`CsrfFilter`	CSRF protection
7	`LogoutFilter`	Logout handling
8	`UsernamePasswordAuthenticationFilter`	Form login
9	`BasicAuthenticationFilter`	HTTP Basic auth
10	`RequestCacheAwareFilter`	Caches requests
11	`SecurityContextHolderAwareRequestFilter`	Servlet API integration
12	`AnonymousAuthenticationFilter`	Anonymous user handling
13	`ExceptionTranslationFilter`	Exception handling
14	`AuthorizationFilter`	Access control decisions

Adding Custom Filters

@Configuration
@EnableWebSecurity
public class SecurityConfig {

    @Bean
    public SecurityFilterChain filterChain(HttpSecurity http) throws Exception {
        http
            // Add custom filter BEFORE UsernamePasswordAuthenticationFilter
            .addFilterBefore(
                new CustomAuthFilter(),
                UsernamePasswordAuthenticationFilter.class
            )
            // Add custom filter AFTER BasicAuthenticationFilter
            .addFilterAfter(
                new AuditFilter(),
                BasicAuthenticationFilter.class
            )
            // Add custom filter AT specific position
            .addFilterAt(
                new CustomBasicAuthFilter(),
                BasicAuthenticationFilter.class
            );

        return http.build();
    }
}

Custom Filter Example

public class RequestLoggingFilter extends OncePerRequestFilter {

    private static final Logger log = LoggerFactory.getLogger(RequestLoggingFilter.class);

    @Override
    protected void doFilterInternal(
            HttpServletRequest request,
            HttpServletResponse response,
            FilterChain filterChain
    ) throws ServletException, IOException {

        long startTime = System.currentTimeMillis();

        String requestId = UUID.randomUUID().toString();
        request.setAttribute("requestId", requestId);

        log.info("Request started: {} {} [{}]",
            request.getMethod(),
            request.getRequestURI(),
            requestId);

        try {
            filterChain.doFilter(request, response);
        } finally {
            long duration = System.currentTimeMillis() - startTime;
            log.info("Request completed: {} {} [{}] - {} in {}ms",
                request.getMethod(),
                request.getRequestURI(),
                requestId,
                response.getStatus(),
                duration);
        }
    }
}

GrantedAuthority & Roles

Authorities represent permissions. Roles are authorities with a ROLE_ prefix.

// Creating authorities
GrantedAuthority readAuthority = new SimpleGrantedAuthority("READ_PRIVILEGE");
GrantedAuthority adminRole = new SimpleGrantedAuthority("ROLE_ADMIN");

// In security config
http.authorizeHttpRequests(auth -> auth
    // Check for authority
    .requestMatchers("/read/**").hasAuthority("READ_PRIVILEGE")
    // Check for role (automatically prefixes with ROLE_)
    .requestMatchers("/admin/**").hasRole("ADMIN")
    // Multiple roles
    .requestMatchers("/manage/**").hasAnyRole("ADMIN", "MANAGER")
);

Role Hierarchy

@Bean
public RoleHierarchy roleHierarchy() {
    RoleHierarchyImpl hierarchy = new RoleHierarchyImpl();
    hierarchy.setHierarchy("""
        ROLE_ADMIN > ROLE_MANAGER
        ROLE_MANAGER > ROLE_USER
        ROLE_USER > ROLE_GUEST
    """);
    return hierarchy;
}

@Bean
public DefaultMethodSecurityExpressionHandler methodSecurityExpressionHandler(
        RoleHierarchy roleHierarchy) {
    DefaultMethodSecurityExpressionHandler handler =
        new DefaultMethodSecurityExpressionHandler();
    handler.setRoleHierarchy(roleHierarchy);
    return handler;
}

Exception Handling

Authentication Exceptions

Exception	Meaning
`BadCredentialsException`	Wrong username/password
`DisabledException`	Account is disabled
`LockedException`	Account is locked
`AccountExpiredException`	Account has expired
`CredentialsExpiredException`	Password has expired
`UsernameNotFoundException`	User doesn’t exist

Custom Exception Handling

@Configuration
@EnableWebSecurity
public class SecurityConfig {

    @Bean
    public SecurityFilterChain filterChain(HttpSecurity http) throws Exception {
        http
            .exceptionHandling(ex -> ex
                // Handle authentication failures
                .authenticationEntryPoint((request, response, authException) -> {
                    response.setContentType("application/json");
                    response.setStatus(HttpServletResponse.SC_UNAUTHORIZED);
                    response.getWriter().write("""
                        {"error": "Unauthorized", "message": "%s"}
                        """.formatted(authException.getMessage()));
                })
                // Handle authorization failures
                .accessDeniedHandler((request, response, accessDeniedException) -> {
                    response.setContentType("application/json");
                    response.setStatus(HttpServletResponse.SC_FORBIDDEN);
                    response.getWriter().write("""
                        {"error": "Forbidden", "message": "Access denied"}
                        """);
                })
            );

        return http.build();
    }
}

Password Encoding

Never store passwords in plain text. Spring Security provides password encoders.

@Bean
public PasswordEncoder passwordEncoder() {
    return new BCryptPasswordEncoder();
}

Password Encoder Comparison

Encoder	Strength	Use Case
`BCryptPasswordEncoder`	Strong	Recommended default
`Argon2PasswordEncoder`	Very Strong	High security requirements
`SCryptPasswordEncoder`	Strong	Memory-hard hashing
`Pbkdf2PasswordEncoder`	Strong	FIPS compliance
`NoOpPasswordEncoder`	None	Testing only, never production

Delegating Password Encoder

Supports multiple encoders for migrating between algorithms:

@Bean
public PasswordEncoder passwordEncoder() {
    String defaultEncoder = "bcrypt";
    Map<String, PasswordEncoder> encoders = Map.of(
        "bcrypt", new BCryptPasswordEncoder(),
        "scrypt", SCryptPasswordEncoder.defaultsForSpringSecurity_v5_8(),
        "argon2", Argon2PasswordEncoder.defaultsForSpringSecurity_v5_8()
    );

    return new DelegatingPasswordEncoder(defaultEncoder, encoders);
}

Stored passwords look like: {bcrypt}$2a$10$...

Complete Configuration Example

@Configuration
@EnableWebSecurity
@EnableMethodSecurity
@RequiredArgsConstructor
public class SecurityConfig {

    private final CustomUserDetailsService userDetailsService;
    private final CustomAuthenticationEntryPoint authEntryPoint;
    private final CustomAccessDeniedHandler accessDeniedHandler;

    @Bean
    public SecurityFilterChain filterChain(HttpSecurity http) throws Exception {
        http
            // Disable CSRF for APIs (enable for web apps with forms)
            .csrf(csrf -> csrf.disable())

            // CORS configuration
            .cors(cors -> cors.configurationSource(corsConfigurationSource()))

            // Session management
            .sessionManagement(session -> session
                .sessionCreationPolicy(SessionCreationPolicy.STATELESS)
            )

            // Authorization rules
            .authorizeHttpRequests(auth -> auth
                .requestMatchers("/api/auth/**").permitAll()
                .requestMatchers("/api/public/**").permitAll()
                .requestMatchers("/actuator/health").permitAll()
                .requestMatchers("/api/admin/**").hasRole("ADMIN")
                .requestMatchers("/api/user/**").hasAnyRole("USER", "ADMIN")
                .anyRequest().authenticated()
            )

            // Exception handling
            .exceptionHandling(ex -> ex
                .authenticationEntryPoint(authEntryPoint)
                .accessDeniedHandler(accessDeniedHandler)
            )

            // Authentication provider
            .authenticationProvider(authenticationProvider())

            // HTTP Basic (for testing)
            .httpBasic(Customizer.withDefaults());

        return http.build();
    }

    @Bean
    public AuthenticationProvider authenticationProvider() {
        DaoAuthenticationProvider provider = new DaoAuthenticationProvider();
        provider.setUserDetailsService(userDetailsService);
        provider.setPasswordEncoder(passwordEncoder());
        return provider;
    }

    @Bean
    public AuthenticationManager authenticationManager(
            AuthenticationConfiguration config) throws Exception {
        return config.getAuthenticationManager();
    }

    @Bean
    public PasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder();
    }

    @Bean
    public CorsConfigurationSource corsConfigurationSource() {
        CorsConfiguration configuration = new CorsConfiguration();
        configuration.setAllowedOrigins(List.of("http://localhost:3000"));
        configuration.setAllowedMethods(List.of("GET", "POST", "PUT", "DELETE"));
        configuration.setAllowedHeaders(List.of("*"));
        configuration.setAllowCredentials(true);

        UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource();
        source.registerCorsConfiguration("/**", configuration);
        return source;
    }
}

Debugging Tips

Enable Debug Logging

# application.yml
logging:
  level:
    org.springframework.security: DEBUG
    org.springframework.security.web.FilterChainProxy: DEBUG

Print Filter Chain

@Component
public class SecurityFilterChainLogger implements ApplicationListener<ApplicationReadyEvent> {

    @Autowired
    private FilterChainProxy filterChainProxy;

    @Override
    public void onApplicationEvent(ApplicationReadyEvent event) {
        filterChainProxy.getFilterChains().forEach(chain -> {
            System.out.println("Filter Chain: " + chain);
            chain.getFilters().forEach(filter ->
                System.out.println("  - " + filter.getClass().getSimpleName())
            );
        });
    }
}

Summary

Component	Responsibility
`SecurityFilterChain`	Ordered list of security filters
`SecurityContext`	Holds current authentication
`Authentication`	Represents authenticated user
`AuthenticationManager`	Orchestrates authentication
`AuthenticationProvider`	Performs actual authentication
`UserDetailsService`	Loads user from database
`PasswordEncoder`	Hashes and verifies passwords
`GrantedAuthority`	Represents permissions/roles

Understanding these components is essential for building secure Spring applications. In the next article, we’ll dive into database authentication and custom UserDetailsService implementations.

Spring Security Architecture (This Article)
Database Authentication & UserDetailsService
OAuth2 & Social Login
Method-Level Security
CSRF, CORS & Security Headers
Production Security Best Practices
