DevOps 7 min read

Kubernetes for Beginners: Complete Guide to Container Orchestration

Learn Kubernetes from scratch. Understand pods, deployments, services, and how to deploy your first application to a Kubernetes cluster with practical examples.

MR

Moshiour Rahman

#kubernetes #docker #devops #containers #k8s #ai

Advertisement

What is Kubernetes?

Kubernetes (K8s) is an open-source container orchestration platform that automates deploying, scaling, and managing containerized applications. Originally developed by Google, it’s now maintained by the Cloud Native Computing Foundation (CNCF).

Why Kubernetes?

ChallengeHow Kubernetes Solves It
Manual scalingAuto-scaling based on load
Single point of failureSelf-healing and redundancy
Complex deploymentsDeclarative configuration
Service discoveryBuilt-in DNS and load balancing
Rolling updatesZero-downtime deployments

Core Kubernetes Concepts

1. Pods

A Pod is the smallest deployable unit in Kubernetes. It can contain one or more containers that share storage and network.

# simple-pod.yaml
apiVersion: v1
kind: Pod
metadata:
  name: my-app-pod
  labels:
    app: my-app
spec:
  containers:
  - name: my-app-container
    image: nginx:latest
    ports:
    - containerPort: 80
    resources:
      requests:
        memory: "64Mi"
        cpu: "250m"
      limits:
        memory: "128Mi"
        cpu: "500m"

Create the pod:

kubectl apply -f simple-pod.yaml
kubectl get pods
kubectl describe pod my-app-pod

2. Deployments

Deployments manage ReplicaSets and provide declarative updates for Pods.

# deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: my-app-deployment
  labels:
    app: my-app
spec:
  replicas: 3
  selector:
    matchLabels:
      app: my-app
  template:
    metadata:
      labels:
        app: my-app
    spec:
      containers:
      - name: my-app
        image: nginx:1.21
        ports:
        - containerPort: 80
        readinessProbe:
          httpGet:
            path: /
            port: 80
          initialDelaySeconds: 5
          periodSeconds: 10
        livenessProbe:
          httpGet:
            path: /
            port: 80
          initialDelaySeconds: 15
          periodSeconds: 20
# Apply deployment
kubectl apply -f deployment.yaml

# Check status
kubectl get deployments
kubectl rollout status deployment/my-app-deployment

# Scale deployment
kubectl scale deployment my-app-deployment --replicas=5

3. Services

Services expose your application to network traffic.

# service.yaml
apiVersion: v1
kind: Service
metadata:
  name: my-app-service
spec:
  type: LoadBalancer
  selector:
    app: my-app
  ports:
  - protocol: TCP
    port: 80
    targetPort: 80

Service Types:

TypeDescriptionUse Case
ClusterIPInternal cluster IPService-to-service communication
NodePortExposes on each node’s IPDevelopment/testing
LoadBalancerExternal load balancerProduction cloud deployments
ExternalNameMaps to external DNSExternal service integration

4. ConfigMaps and Secrets

Store configuration separately from your container images.

# configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: app-config
data:
  DATABASE_HOST: "postgres.default.svc.cluster.local"
  LOG_LEVEL: "info"
  CACHE_TTL: "3600"
# secret.yaml
apiVersion: v1
kind: Secret
metadata:
  name: app-secrets
type: Opaque
data:
  # Base64 encoded values
  DB_PASSWORD: cGFzc3dvcmQxMjM=
  API_KEY: c2VjcmV0LWFwaS1rZXk=

Using them in a deployment:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: my-app
spec:
  replicas: 2
  selector:
    matchLabels:
      app: my-app
  template:
    metadata:
      labels:
        app: my-app
    spec:
      containers:
      - name: my-app
        image: my-app:latest
        envFrom:
        - configMapRef:
            name: app-config
        env:
        - name: DB_PASSWORD
          valueFrom:
            secretKeyRef:
              name: app-secrets
              key: DB_PASSWORD

Setting Up a Local Kubernetes Cluster

Option 1: Minikube

# Install Minikube (macOS)
brew install minikube

# Start cluster
minikube start --driver=docker --memory=4096 --cpus=2

# Verify
kubectl cluster-info
kubectl get nodes

# Access dashboard
minikube dashboard

Option 2: Kind (Kubernetes in Docker)

# Install Kind
brew install kind

# Create cluster
kind create cluster --name my-cluster

# Create multi-node cluster
cat <<EOF | kind create cluster --config=-
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
- role: worker
- role: worker
EOF

Deploying a Complete Application

Let’s deploy a Node.js application with MongoDB:

1. MongoDB StatefulSet

# mongodb.yaml
apiVersion: v1
kind: Service
metadata:
  name: mongodb
spec:
  ports:
  - port: 27017
  clusterIP: None
  selector:
    app: mongodb
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: mongodb
spec:
  serviceName: "mongodb"
  replicas: 1
  selector:
    matchLabels:
      app: mongodb
  template:
    metadata:
      labels:
        app: mongodb
    spec:
      containers:
      - name: mongodb
        image: mongo:6
        ports:
        - containerPort: 27017
        volumeMounts:
        - name: mongo-data
          mountPath: /data/db
        env:
        - name: MONGO_INITDB_ROOT_USERNAME
          value: admin
        - name: MONGO_INITDB_ROOT_PASSWORD
          valueFrom:
            secretKeyRef:
              name: mongodb-secret
              key: password
  volumeClaimTemplates:
  - metadata:
      name: mongo-data
    spec:
      accessModes: ["ReadWriteOnce"]
      resources:
        requests:
          storage: 1Gi

2. Application Deployment

# app-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: node-app
spec:
  replicas: 3
  selector:
    matchLabels:
      app: node-app
  template:
    metadata:
      labels:
        app: node-app
    spec:
      containers:
      - name: node-app
        image: my-node-app:latest
        ports:
        - containerPort: 3000
        env:
        - name: MONGODB_URI
          value: "mongodb://admin:$(MONGO_PASSWORD)@mongodb:27017"
        - name: MONGO_PASSWORD
          valueFrom:
            secretKeyRef:
              name: mongodb-secret
              key: password
        resources:
          requests:
            cpu: "100m"
            memory: "128Mi"
          limits:
            cpu: "500m"
            memory: "512Mi"
---
apiVersion: v1
kind: Service
metadata:
  name: node-app-service
spec:
  type: LoadBalancer
  selector:
    app: node-app
  ports:
  - port: 80
    targetPort: 3000

3. Horizontal Pod Autoscaler

# hpa.yaml
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: node-app-hpa
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: node-app
  minReplicas: 2
  maxReplicas: 10
  metrics:
  - type: Resource
    resource:
      name: cpu
      target:
        type: Utilization
        averageUtilization: 70
  - type: Resource
    resource:
      name: memory
      target:
        type: Utilization
        averageUtilization: 80

Essential kubectl Commands

# Cluster info
kubectl cluster-info
kubectl get nodes -o wide

# Working with pods
kubectl get pods --all-namespaces
kubectl logs <pod-name> -f
kubectl exec -it <pod-name> -- /bin/bash
kubectl port-forward <pod-name> 8080:80

# Deployments
kubectl get deployments
kubectl rollout history deployment/<name>
kubectl rollout undo deployment/<name>
kubectl set image deployment/<name> container=image:tag

# Debugging
kubectl describe pod <pod-name>
kubectl get events --sort-by=.metadata.creationTimestamp
kubectl top pods
kubectl top nodes

# Namespaces
kubectl create namespace production
kubectl get pods -n production
kubectl config set-context --current --namespace=production

Kubernetes Best Practices

1. Resource Management

Always set resource requests and limits:

resources:
  requests:
    memory: "128Mi"
    cpu: "100m"
  limits:
    memory: "256Mi"
    cpu: "500m"

2. Health Checks

Use both liveness and readiness probes:

livenessProbe:
  httpGet:
    path: /health
    port: 8080
  initialDelaySeconds: 30
  periodSeconds: 10

readinessProbe:
  httpGet:
    path: /ready
    port: 8080
  initialDelaySeconds: 5
  periodSeconds: 5

3. Security

securityContext:
  runAsNonRoot: true
  runAsUser: 1000
  readOnlyRootFilesystem: true
  allowPrivilegeEscalation: false

4. Use Namespaces

Organize resources by environment or team:

kubectl create namespace development
kubectl create namespace staging
kubectl create namespace production

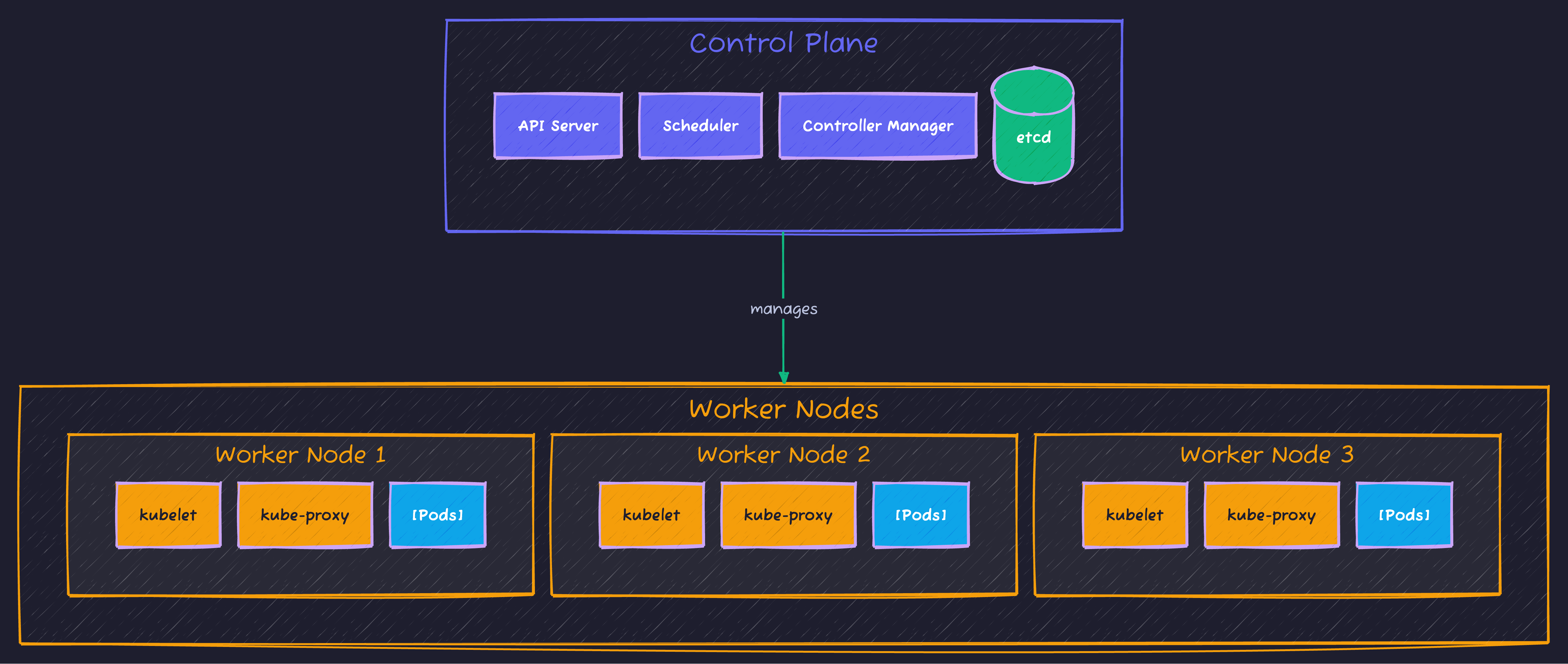

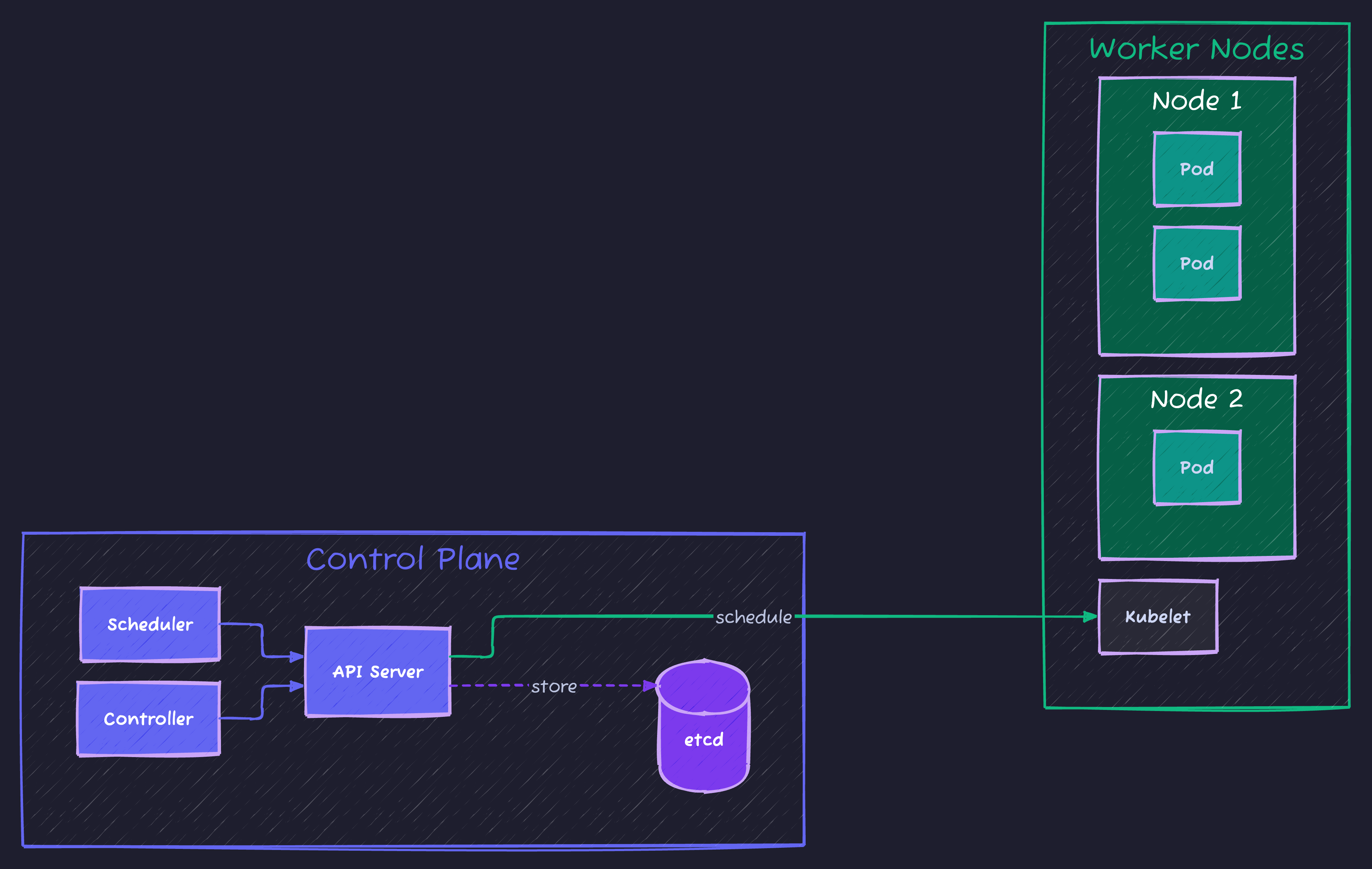

Kubernetes Architecture

┌─────────────────────────────────────────────────────────────┐
│                      Control Plane                          │
│  ┌─────────────┐ ┌─────────────┐ ┌─────────────────────────┐│
│  │ API Server  │ │  Scheduler  │ │ Controller Manager      ││
│  └─────────────┘ └─────────────┘ └─────────────────────────┘│
│  ┌─────────────────────────────────────────────────────────┐│
│  │                        etcd                             ││
│  └─────────────────────────────────────────────────────────┘│
└─────────────────────────────────────────────────────────────┘
                              │
          ┌───────────────────┼───────────────────┐
          │                   │                   │
    ┌─────┴─────┐       ┌─────┴─────┐       ┌─────┴─────┐
    │  Worker   │       │  Worker   │       │  Worker   │
    │  Node 1   │       │  Node 2   │       │  Node 3   │
    │ ┌───────┐ │       │ ┌───────┐ │       │ ┌───────┐ │
    │ │kubelet│ │       │ │kubelet│ │       │ │kubelet│ │
    │ └───────┘ │       │ └───────┘ │       │ └───────┘ │
    │ ┌───────┐ │       │ ┌───────┐ │       │ ┌───────┐ │
    │ │kube-  │ │       │ │kube-  │ │       │ │kube-  │ │
    │ │proxy  │ │       │ │proxy  │ │       │ │proxy  │ │
    │ └───────┘ │       │ └───────┘ │       │ └───────┘ │
    │  [Pods]   │       │  [Pods]   │       │  [Pods]   │
    └───────────┘       └───────────┘       └───────────┘

Summary

ConceptPurpose
PodSmallest deployable unit
DeploymentManages replicas and updates
ServiceNetwork exposure
ConfigMapNon-sensitive configuration
SecretSensitive data
StatefulSetStateful applications
HPAAuto-scaling

What’s Next?

  • Learn Helm for package management
  • Explore Kubernetes networking (Ingress, Network Policies)
  • Set up CI/CD with Kubernetes
  • Study for CKA certification

Kubernetes has a steep learning curve, but mastering it opens doors to modern cloud-native development. Start small, experiment with Minikube, and gradually tackle more complex scenarios.
