LangGraph Deep Dive: Build AI Agents as State Machines

AI Agents Mastery Series

This is Part 2 of our comprehensive AI Agents series.

Part	Topic	Level
1	Fundamentals - Build from Scratch	Beginner
2	LangGraph Deep Dive	Intermediate
3	Local LLMs with Ollama	Intermediate
4	Tool-Using Agents	Intermediate
5	Multi-Agent Systems	Advanced
6	Production Deployment	Advanced

Why LangGraph?

In Part 1, we built an agent from scratch. It worked, but had limitations:

Our Custom Agent	LangGraph
Manual state management	Built-in state persistence
No checkpointing	Automatic checkpoints
Hard to debug	Visual graph inspection
Difficult to scale	Production-ready patterns

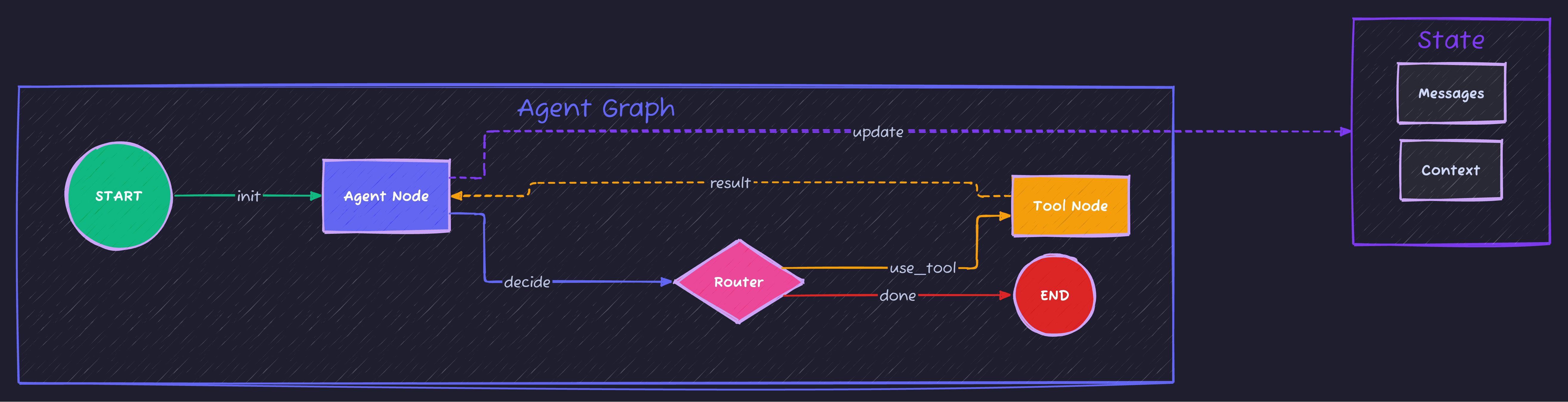

LangGraph treats agents as state machines—graphs where nodes are computation steps and edges are transitions. This makes complex workflows manageable.

What is LangGraph?

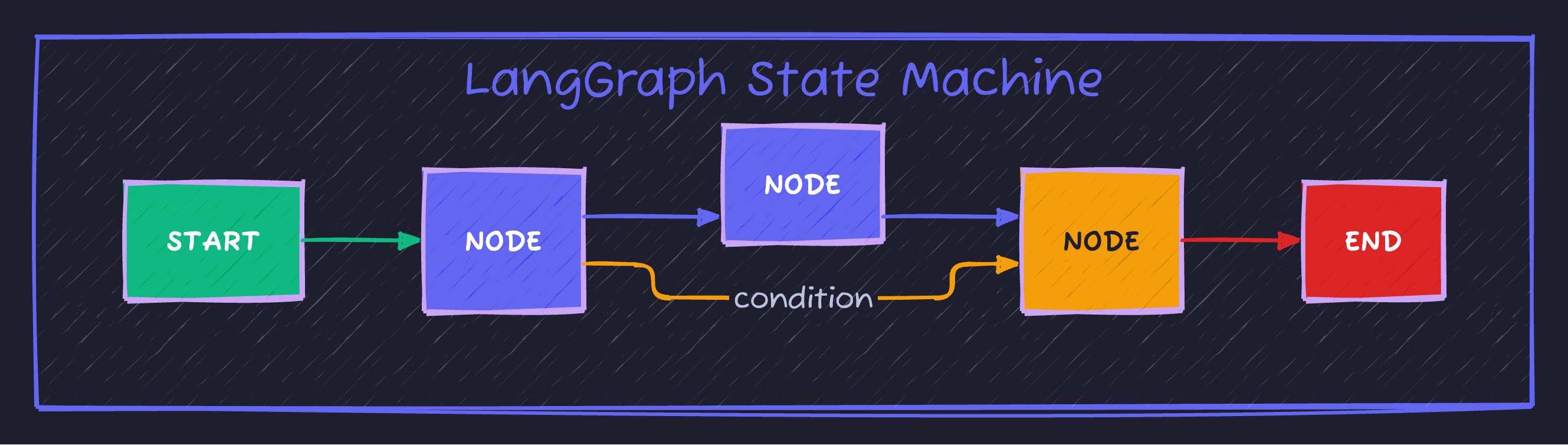

LangGraph is a framework by LangChain for building stateful, multi-actor applications with LLMs. Key concepts:

┌─────────────────────────────────────────────────────────────┐
│                       STATE GRAPH                           │
│                                                             │
│   ┌─────────┐         ┌─────────┐         ┌─────────┐      │
│   │  START  │ ──────> │  NODE   │ ──────> │  NODE   │      │
│   └─────────┘         └─────────┘         └─────────┘      │
│                            │                    │          │
│                            │    ┌───────────────┘          │
│                            v    v                          │
│                       ┌─────────┐         ┌─────────┐      │
│                       │  NODE   │ ──────> │   END   │      │
│                       └─────────┘         └─────────┘      │
│                                                             │
└─────────────────────────────────────────────────────────────┘

Component	Description	Example
State	Data passed between nodes	`{"messages": [], "context": {}}`
Node	Function that transforms state	`call_llm`, `execute_tool`
Edge	Connection between nodes	`START -> agent`
Conditional Edge	Dynamic routing based on state	`if tool_call -> execute else -> end`

Setup

pip install langgraph langchain-openai python-dotenv

Create .env:

OPENAI_API_KEY=your-key-here

Your First LangGraph Agent

Let’s build a simple conversational agent:

# basic_langgraph.py
import os
from dotenv import load_dotenv
from typing import Annotated, TypedDict
from langgraph.graph import StateGraph, START, END
from langgraph.graph.message import add_messages
from langchain_openai import ChatOpenAI

load_dotenv()

# 1. Define the state
class State(TypedDict):
    messages: Annotated[list, add_messages]

# 2. Create the LLM
llm = ChatOpenAI(model="gpt-4o-mini")

# 3. Define the node function
def chatbot(state: State) -> State:
    """Process messages and generate response."""
    response = llm.invoke(state["messages"])
    return {"messages": [response]}

# 4. Build the graph
graph_builder = StateGraph(State)

# Add nodes
graph_builder.add_node("chatbot", chatbot)

# Add edges
graph_builder.add_edge(START, "chatbot")
graph_builder.add_edge("chatbot", END)

# Compile the graph
graph = graph_builder.compile()

# 5. Run it
def chat(user_input: str):
    result = graph.invoke({"messages": [{"role": "user", "content": user_input}]})
    return result["messages"][-1].content

if __name__ == "__main__":
    print(chat("What is LangGraph?"))

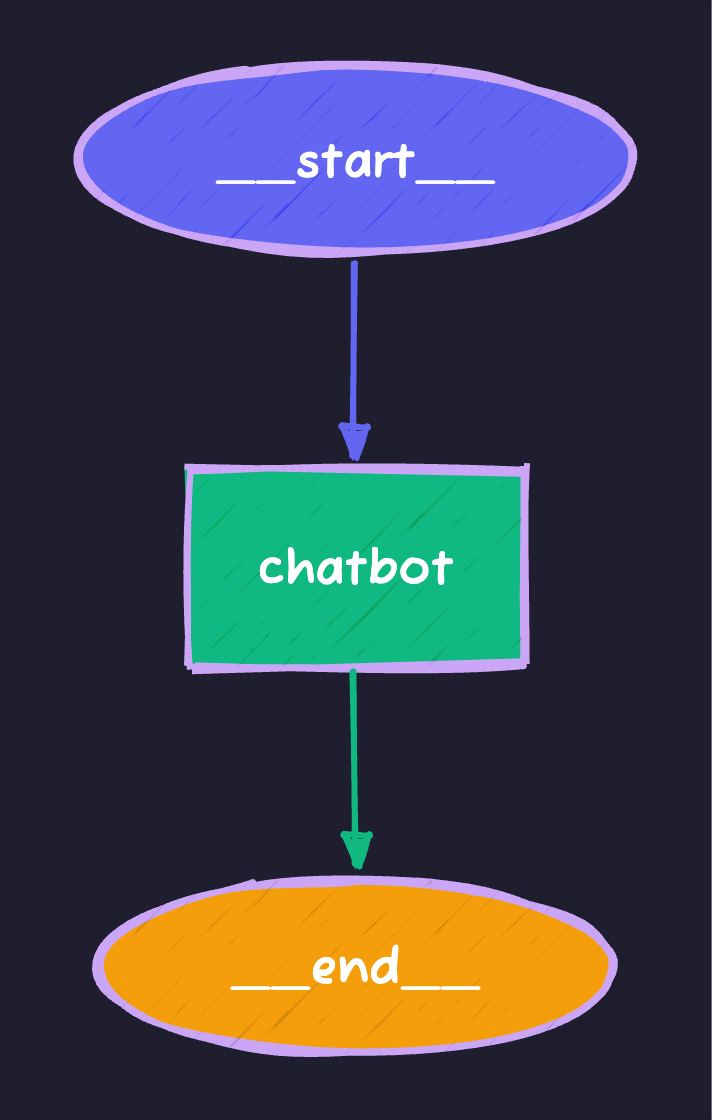

Visualizing the Graph

# Visualize with Mermaid
print(graph.get_graph().draw_mermaid())

Output:

graph TD
    __start__ --> chatbot
    chatbot --> __end__

Adding Tools: The Agent Pattern

Real agents need tools. LangGraph has built-in support:

# tool_agent.py
import os
from dotenv import load_dotenv
from typing import Annotated, TypedDict, Literal
from langgraph.graph import StateGraph, START, END
from langgraph.graph.message import add_messages
from langgraph.prebuilt import ToolNode, tools_condition
from langchain_openai import ChatOpenAI
from langchain_core.tools import tool

load_dotenv()

# Define tools
@tool
def get_weather(city: str) -> str:
    """Get the current weather for a city."""
    # Simulated weather data
    weather_data = {
        "tokyo": "72°F, Partly Cloudy",
        "london": "55°F, Rainy",
        "new york": "65°F, Sunny",
        "paris": "60°F, Overcast"
    }
    return weather_data.get(city.lower(), f"Weather data not available for {city}")

@tool
def calculate(expression: str) -> str:
    """Evaluate a mathematical expression."""
    try:
        # Safe evaluation of math expressions
        allowed = set('0123456789+-*/.() ')
        if all(c in allowed for c in expression):
            return str(eval(expression))
        return "Invalid expression"
    except Exception as e:
        return f"Error: {str(e)}"

@tool
def search_web(query: str) -> str:
    """Search the web for information."""
    # Simulated search results
    return f"Search results for '{query}': [Simulated results - integrate real search API]"

tools = [get_weather, calculate, search_web]

# State definition
class State(TypedDict):
    messages: Annotated[list, add_messages]

# Create LLM with tools
llm = ChatOpenAI(model="gpt-4o-mini")
llm_with_tools = llm.bind_tools(tools)

# Agent node - decides what to do
def agent(state: State) -> State:
    """The agent node that reasons and decides."""
    response = llm_with_tools.invoke(state["messages"])
    return {"messages": [response]}

# Build the graph
graph_builder = StateGraph(State)

# Add nodes
graph_builder.add_node("agent", agent)
graph_builder.add_node("tools", ToolNode(tools=tools))

# Add edges
graph_builder.add_edge(START, "agent")

# Conditional edge: if tool call, go to tools; else end
graph_builder.add_conditional_edges(
    "agent",
    tools_condition,  # Built-in function that checks for tool calls
)

# After tools execute, go back to agent
graph_builder.add_edge("tools", "agent")

# Compile
graph = graph_builder.compile()

def run_agent(query: str):
    """Run the agent with a query."""
    print(f"\n{'='*60}")
    print(f"Query: {query}")
    print('='*60)

    result = graph.invoke({
        "messages": [{"role": "user", "content": query}]
    })

    # Print the conversation
    for msg in result["messages"]:
        role = msg.type if hasattr(msg, 'type') else 'unknown'
        content = msg.content if hasattr(msg, 'content') else str(msg)
        if content:
            print(f"\n[{role.upper()}]: {content[:500]}")

    return result["messages"][-1].content

if __name__ == "__main__":
    # Test queries
    run_agent("What's the weather in Tokyo?")
    run_agent("Calculate 15% of 850")
    run_agent("What's the weather in London and what is 100 * 1.15?")

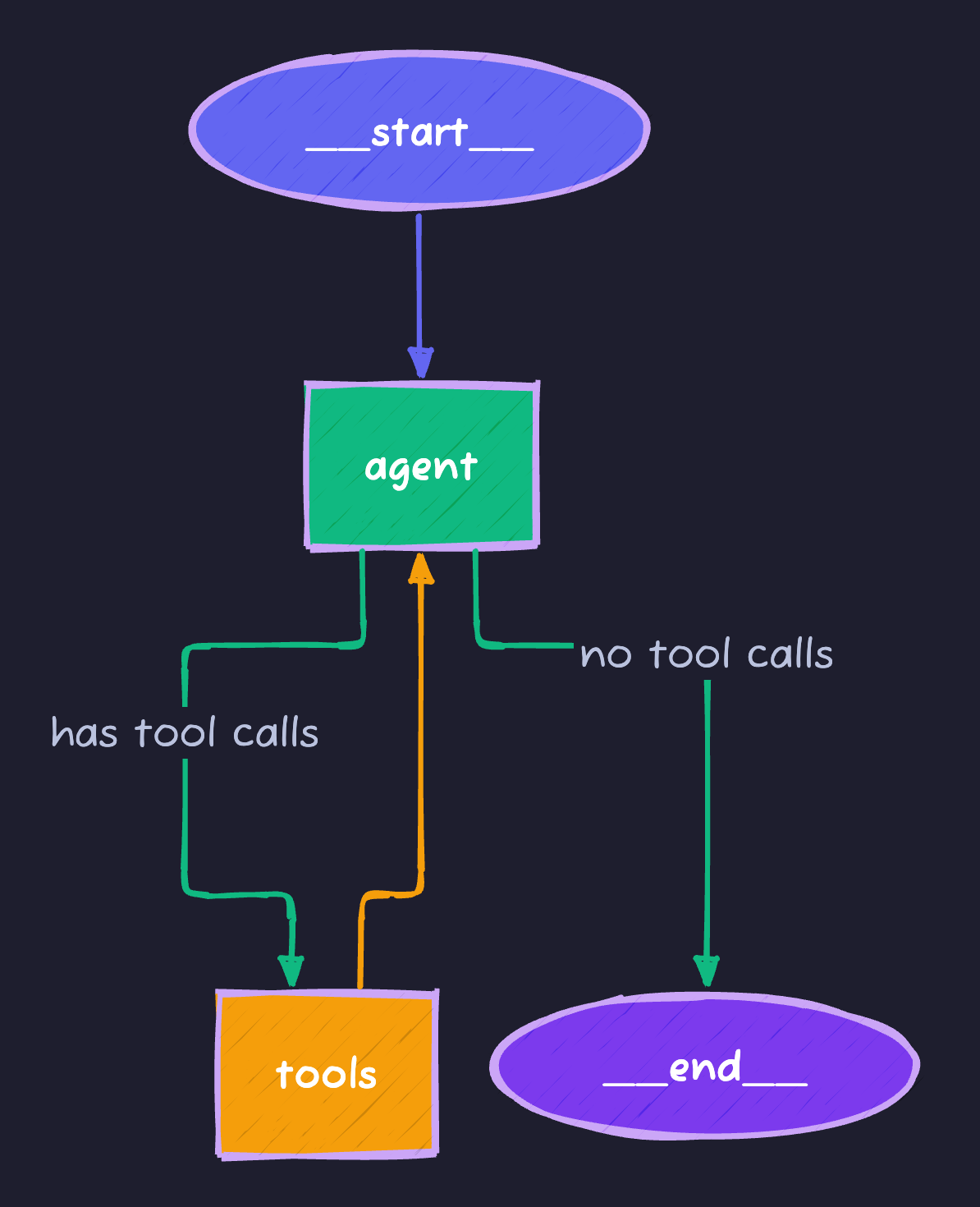

The Graph Structure

graph TD
    __start__ --> agent
    agent -->|has tool calls| tools
    agent -->|no tool calls| __end__
    tools --> agent

This creates a cycle—the agent can call tools multiple times until it’s done.

State Management Deep Dive

State is the heart of LangGraph. Let’s explore advanced patterns:

Custom State with Multiple Fields

from typing import Annotated, TypedDict, Optional
from langgraph.graph.message import add_messages
from operator import add

class AdvancedState(TypedDict):
    # Messages with automatic aggregation
    messages: Annotated[list, add_messages]

    # Simple values (overwritten each time)
    current_step: str
    iteration_count: int

    # List that accumulates (using add operator)
    tool_calls_made: Annotated[list[str], add]

    # Optional context
    user_context: Optional[dict]

State Reducers

Reducers define how state updates are merged:

Reducer	Behavior	Use Case
`add_messages`	Appends messages intelligently	Chat history
`add` (operator)	Concatenates lists	Accumulating results
Default (None)	Overwrites value	Simple values

from operator import add
from typing import Annotated

class State(TypedDict):
    # Each return value is appended to the list
    results: Annotated[list[str], add]

    # Each return value overwrites the previous
    status: str

Conditional Routing

Real agents need to make decisions. Here’s how to route dynamically:

# conditional_routing.py
from typing import Literal
from langgraph.graph import StateGraph, START, END

class State(TypedDict):
    query: str
    category: str
    response: str

def categorize(state: State) -> State:
    """Categorize the query."""
    query = state["query"].lower()

    if any(word in query for word in ["weather", "temperature", "forecast"]):
        category = "weather"
    elif any(word in query for word in ["calculate", "math", "compute", "+", "-", "*", "/"]):
        category = "math"
    else:
        category = "general"

    return {"category": category}

def handle_weather(state: State) -> State:
    return {"response": f"Weather handler: Processing '{state['query']}'"}

def handle_math(state: State) -> State:
    return {"response": f"Math handler: Processing '{state['query']}'"}

def handle_general(state: State) -> State:
    return {"response": f"General handler: Processing '{state['query']}'"}

# Router function
def route_query(state: State) -> Literal["weather", "math", "general"]:
    """Route to the appropriate handler based on category."""
    return state["category"]

# Build graph
builder = StateGraph(State)

builder.add_node("categorize", categorize)
builder.add_node("weather", handle_weather)
builder.add_node("math", handle_math)
builder.add_node("general", handle_general)

builder.add_edge(START, "categorize")

# Conditional routing based on category
builder.add_conditional_edges(
    "categorize",
    route_query,
    {
        "weather": "weather",
        "math": "math",
        "general": "general"
    }
)

# All handlers go to END
builder.add_edge("weather", END)
builder.add_edge("math", END)
builder.add_edge("general", END)

graph = builder.compile()

# Test
print(graph.invoke({"query": "What's the weather?", "category": "", "response": ""}))
print(graph.invoke({"query": "Calculate 5 + 3", "category": "", "response": ""}))

Persistence and Checkpointing

LangGraph can save state between runs—critical for long-running agents:

# persistent_agent.py
from langgraph.checkpoint.memory import MemorySaver
from langgraph.graph import StateGraph, START, END
from typing import Annotated, TypedDict
from langgraph.graph.message import add_messages
from langchain_openai import ChatOpenAI

class State(TypedDict):
    messages: Annotated[list, add_messages]

llm = ChatOpenAI(model="gpt-4o-mini")

def chatbot(state: State) -> State:
    response = llm.invoke(state["messages"])
    return {"messages": [response]}

# Build graph
builder = StateGraph(State)
builder.add_node("chatbot", chatbot)
builder.add_edge(START, "chatbot")
builder.add_edge("chatbot", END)

# Add memory checkpointer
memory = MemorySaver()
graph = builder.compile(checkpointer=memory)

def chat_with_memory(user_input: str, thread_id: str = "default"):
    """Chat with persistent memory across calls."""
    config = {"configurable": {"thread_id": thread_id}}

    result = graph.invoke(
        {"messages": [{"role": "user", "content": user_input}]},
        config=config
    )

    return result["messages"][-1].content

# Test persistence
if __name__ == "__main__":
    # Conversation 1
    print(chat_with_memory("My name is Alice", thread_id="user-123"))
    print(chat_with_memory("What's my name?", thread_id="user-123"))

    # Different thread - no memory of Alice
    print(chat_with_memory("What's my name?", thread_id="user-456"))

Checkpoint Storage Options

Storage	Use Case	Setup
`MemorySaver`	Development/testing	`MemorySaver()`
`SqliteSaver`	Local persistence	`SqliteSaver.from_conn_string("db.sqlite")`
`PostgresSaver`	Production	`PostgresSaver.from_conn_string(db_url)`

Human-in-the-Loop

Sometimes agents need human approval before taking action:

# human_in_loop.py
from langgraph.graph import StateGraph, START, END
from langgraph.checkpoint.memory import MemorySaver
from typing import Annotated, TypedDict
from langgraph.graph.message import add_messages

class State(TypedDict):
    messages: Annotated[list, add_messages]
    pending_action: str
    approved: bool

def agent(state: State) -> State:
    # Agent decides on an action that needs approval
    return {
        "pending_action": "delete_all_files",
        "messages": [{"role": "assistant", "content": "I want to delete all files. Awaiting approval."}]
    }

def execute_action(state: State) -> State:
    if state["approved"]:
        return {"messages": [{"role": "assistant", "content": f"Executed: {state['pending_action']}"}]}
    else:
        return {"messages": [{"role": "assistant", "content": "Action was not approved."}]}

def should_continue(state: State) -> str:
    # This creates an interrupt point
    if state.get("pending_action") and not state.get("approved"):
        return "wait_for_approval"
    return "execute"

builder = StateGraph(State)
builder.add_node("agent", agent)
builder.add_node("execute", execute_action)

builder.add_edge(START, "agent")
builder.add_conditional_edges(
    "agent",
    should_continue,
    {
        "wait_for_approval": END,  # Pause here for human input
        "execute": "execute"
    }
)
builder.add_edge("execute", END)

memory = MemorySaver()
graph = builder.compile(checkpointer=memory, interrupt_before=["execute"])

# Usage:
# 1. Run until interrupt
# 2. Human reviews and sets approved=True/False
# 3. Resume from checkpoint

Real-World Pattern: Research Agent

Let’s build a practical research agent that:

Breaks down questions into sub-queries
Searches for information
Synthesizes findings

# research_agent.py
import os
from dotenv import load_dotenv
from typing import Annotated, TypedDict, List
from langgraph.graph import StateGraph, START, END
from langgraph.graph.message import add_messages
from langchain_openai import ChatOpenAI
from langchain_core.messages import HumanMessage, AIMessage, SystemMessage
from operator import add

load_dotenv()

class ResearchState(TypedDict):
    messages: Annotated[list, add_messages]
    research_question: str
    sub_questions: List[str]
    findings: Annotated[List[str], add]
    final_report: str
    current_step: str

llm = ChatOpenAI(model="gpt-4o-mini")

def decompose_question(state: ResearchState) -> ResearchState:
    """Break the main question into sub-questions."""
    prompt = f"""Break down this research question into 3-4 specific sub-questions:

Question: {state['research_question']}

Return only the sub-questions, one per line."""

    response = llm.invoke([HumanMessage(content=prompt)])
    sub_questions = [q.strip() for q in response.content.strip().split('\n') if q.strip()]

    return {
        "sub_questions": sub_questions[:4],
        "current_step": "research",
        "messages": [AIMessage(content=f"Identified {len(sub_questions)} sub-questions to research.")]
    }

def research_sub_questions(state: ResearchState) -> ResearchState:
    """Research each sub-question."""
    findings = []

    for question in state["sub_questions"]:
        prompt = f"""Provide a brief, factual answer to this question:

{question}

Keep your answer to 2-3 sentences with key facts."""

        response = llm.invoke([HumanMessage(content=prompt)])
        findings.append(f"Q: {question}\nA: {response.content}")

    return {
        "findings": findings,
        "current_step": "synthesize",
        "messages": [AIMessage(content=f"Completed research on {len(findings)} sub-questions.")]
    }

def synthesize_report(state: ResearchState) -> ResearchState:
    """Synthesize findings into a final report."""
    findings_text = "\n\n".join(state["findings"])

    prompt = f"""Based on these research findings, write a comprehensive summary:

Original Question: {state['research_question']}

Findings:
{findings_text}

Write a well-structured summary that answers the original question."""

    response = llm.invoke([HumanMessage(content=prompt)])

    return {
        "final_report": response.content,
        "current_step": "complete",
        "messages": [AIMessage(content="Research complete. Final report generated.")]
    }

# Build the graph
builder = StateGraph(ResearchState)

builder.add_node("decompose", decompose_question)
builder.add_node("research", research_sub_questions)
builder.add_node("synthesize", synthesize_report)

builder.add_edge(START, "decompose")
builder.add_edge("decompose", "research")
builder.add_edge("research", "synthesize")
builder.add_edge("synthesize", END)

research_agent = builder.compile()

def research(question: str) -> str:
    """Run a research query."""
    result = research_agent.invoke({
        "research_question": question,
        "messages": [],
        "sub_questions": [],
        "findings": [],
        "final_report": "",
        "current_step": "start"
    })

    return result["final_report"]

if __name__ == "__main__":
    report = research("What are the main benefits and challenges of using AI agents in production?")
    print("\n" + "="*60)
    print("RESEARCH REPORT")
    print("="*60)
    print(report)

LangGraph Patterns Cheat Sheet

Pattern	When to Use	Key Code
Simple Chain	Linear workflows	`add_edge(A, B)`
Tool Agent	LLM + tools	`ToolNode`, `tools_condition`
Conditional	Decision points	`add_conditional_edges()`
Cycle	Iterative refinement	Edge from later node to earlier
Parallel	Independent tasks	Multiple edges from one node
Human-in-loop	Approval needed	`interrupt_before=["node"]`

Debugging LangGraph

1. Visualize the Graph

# Print as Mermaid
print(graph.get_graph().draw_mermaid())

# Or save as PNG (requires graphviz)
graph.get_graph().draw_png("graph.png")

2. Stream Events

for event in graph.stream({"messages": [("user", "Hello")]}):
    print(event)

3. Inspect State

# Get state at any point
state = graph.get_state(config)
print(state.values)
print(state.next)  # What node runs next

Summary

Concept	What You Learned
StateGraph	Define agents as state machines
Nodes	Functions that transform state
Edges	Connections between nodes
Conditional Edges	Dynamic routing based on state
Tools	Integrate external capabilities
Checkpointing	Persist state across runs
Human-in-loop	Pause for approval

What’s Next?

In Part 3, we’ll learn to run these agents completely locally with Ollama—zero API costs, full privacy, offline capable.

Continue to Part 3: Local LLMs with Ollama →

Full Code Repository

git clone https://github.com/Moshiour027/ai-agents-mastery.git
cd ai-agents-mastery/02-langgraph
pip install -r requirements.txt
python research_agent.py
