Spring Boot Microservices: Complete Architecture Guide

What are Microservices?

Microservices architecture breaks applications into small, independent services that communicate over APIs. Each service is focused on a specific business capability.

Monolith vs Microservices

Aspect	Monolith	Microservices
Deployment	Single unit	Independent services
Scaling	Scale entire app	Scale individual services
Technology	Single stack	Polyglot possible
Team structure	Single team	Service-per-team
Failure	Affects whole app	Isolated failures

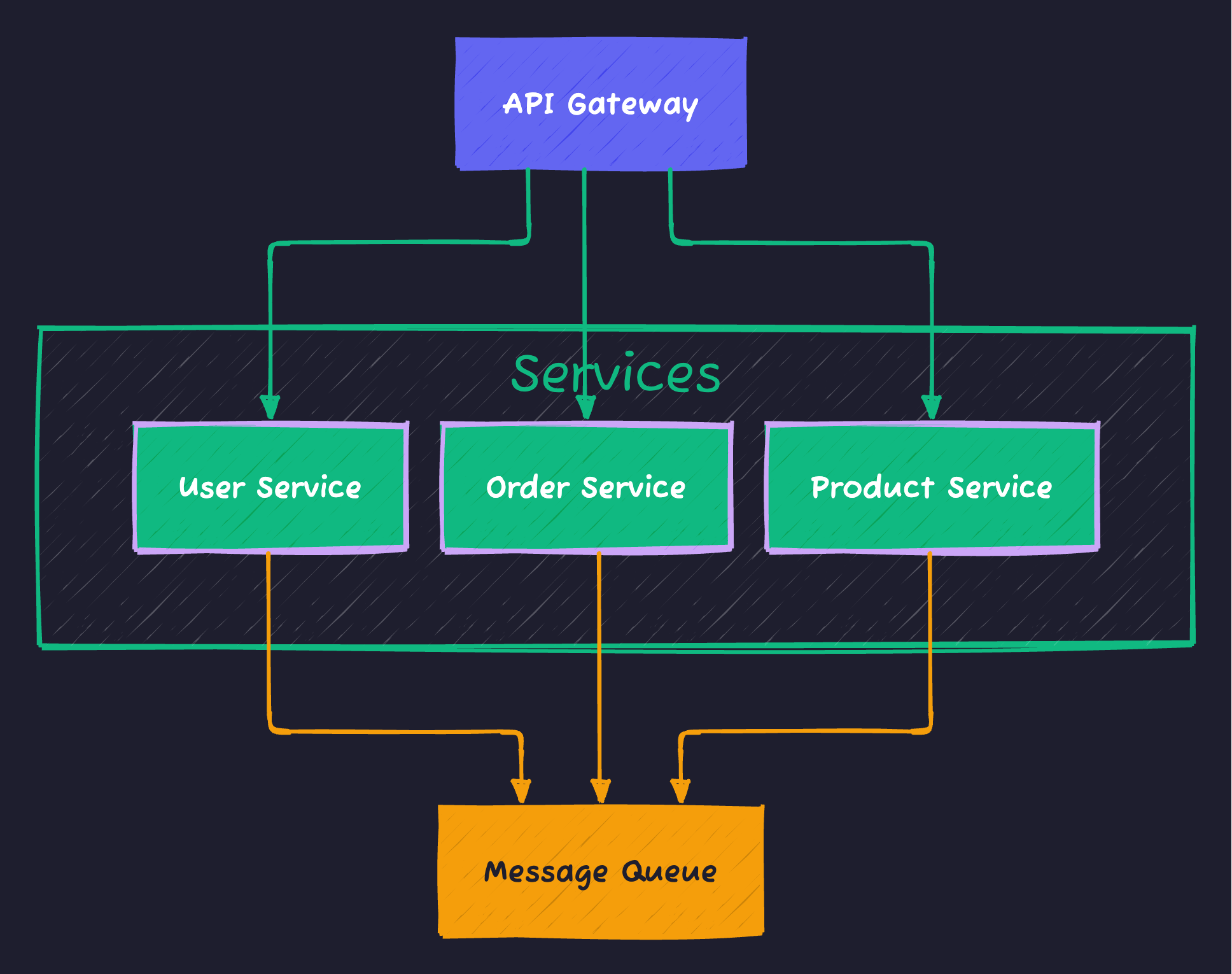

Architecture Overview

                    ┌─────────────────┐
                    │   API Gateway   │
                    │   (Spring Cloud)│
                    └────────┬────────┘
                             │
        ┌────────────────────┼────────────────────┐
        │                    │                    │
   ┌────▼────┐          ┌────▼────┐          ┌────▼────┐
   │ User    │          │ Order   │          │ Product │
   │ Service │          │ Service │          │ Service │
   └────┬────┘          └────┬────┘          └────┬────┘
        │                    │                    │
        └────────────────────┼────────────────────┘
                             │
                    ┌────────▼────────┐
                    │  Config Server  │
                    │  Service Disc.  │
                    └─────────────────┘

Project Setup

Parent POM

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0">
    <modelVersion>4.0.0</modelVersion>
    <packaging>pom</packaging>

    <groupId>com.techyowls</groupId>
    <artifactId>microservices-parent</artifactId>
    <version>1.0.0</version>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.2.0</version>
    </parent>

    <properties>
        <java.version>17</java.version>
        <spring-cloud.version>2023.0.0</spring-cloud.version>
    </properties>

    <modules>
        <module>config-server</module>
        <module>discovery-server</module>
        <module>api-gateway</module>
        <module>user-service</module>
        <module>order-service</module>
        <module>product-service</module>
    </modules>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>
</project>

Config Server

Centralized configuration management for all services.

Dependencies

<dependencies>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-config-server</artifactId>
    </dependency>
</dependencies>

Application

@SpringBootApplication
@EnableConfigServer
public class ConfigServerApplication {
    public static void main(String[] args) {
        SpringApplication.run(ConfigServerApplication.class, args);
    }
}

Configuration

# application.yml
server:
  port: 8888

spring:
  application:
    name: config-server
  cloud:
    config:
      server:
        git:
          uri: https://github.com/yourusername/config-repo
          default-label: main
          search-paths: '{application}'

Discovery Server (Eureka)

Service registry for dynamic service discovery.

Dependencies

<dependencies>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
    </dependency>
</dependencies>

Application

@SpringBootApplication
@EnableEurekaServer
public class DiscoveryServerApplication {
    public static void main(String[] args) {
        SpringApplication.run(DiscoveryServerApplication.class, args);
    }
}

Configuration

server:
  port: 8761

spring:
  application:
    name: discovery-server

eureka:
  instance:
    hostname: localhost
  client:
    register-with-eureka: false
    fetch-registry: false
    service-url:
      defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka/

API Gateway

Single entry point for all client requests.

Dependencies

<dependencies>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-gateway</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    </dependency>
</dependencies>

Configuration

server:
  port: 8080

spring:
  application:
    name: api-gateway
  cloud:
    gateway:
      discovery:
        locator:
          enabled: true
          lower-case-service-id: true
      routes:
        - id: user-service
          uri: lb://USER-SERVICE
          predicates:
            - Path=/api/users/**
          filters:
            - RewritePath=/api/users/(?<segment>.*), /${segment}

        - id: order-service
          uri: lb://ORDER-SERVICE
          predicates:
            - Path=/api/orders/**
          filters:
            - RewritePath=/api/orders/(?<segment>.*), /${segment}

        - id: product-service
          uri: lb://PRODUCT-SERVICE
          predicates:
            - Path=/api/products/**
          filters:
            - RewritePath=/api/products/(?<segment>.*), /${segment}

eureka:
  client:
    service-url:
      defaultZone: http://localhost:8761/eureka/

Custom Filters

@Component
public class AuthenticationFilter implements GlobalFilter, Ordered {

    @Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
        ServerHttpRequest request = exchange.getRequest();

        // Skip auth for public endpoints
        if (isPublicEndpoint(request.getPath().toString())) {
            return chain.filter(exchange);
        }

        // Check for Authorization header
        if (!request.getHeaders().containsKey("Authorization")) {
            return unauthorized(exchange);
        }

        String authHeader = request.getHeaders().getFirst("Authorization");
        if (authHeader == null || !authHeader.startsWith("Bearer ")) {
            return unauthorized(exchange);
        }

        // Validate token (simplified - use proper JWT validation)
        String token = authHeader.substring(7);
        if (!isValidToken(token)) {
            return unauthorized(exchange);
        }

        return chain.filter(exchange);
    }

    private boolean isPublicEndpoint(String path) {
        return path.contains("/public") || path.contains("/auth");
    }

    private boolean isValidToken(String token) {
        // Implement proper JWT validation
        return token != null && !token.isEmpty();
    }

    private Mono<Void> unauthorized(ServerWebExchange exchange) {
        exchange.getResponse().setStatusCode(HttpStatus.UNAUTHORIZED);
        return exchange.getResponse().setComplete();
    }

    @Override
    public int getOrder() {
        return -1;
    }
}

User Service

Dependencies

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-data-jpa</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-config</artifactId>
    </dependency>
</dependencies>

Configuration

server:
  port: 0  # Random port for multiple instances

spring:
  application:
    name: user-service
  config:
    import: optional:configserver:http://localhost:8888
  datasource:
    url: jdbc:postgresql://localhost:5432/userdb
    username: postgres
    password: password

eureka:
  client:
    service-url:
      defaultZone: http://localhost:8761/eureka/
  instance:
    instance-id: ${spring.application.name}:${random.uuid}

Entity and Repository

@Entity
@Table(name = "users")
@Data
@NoArgsConstructor
@AllArgsConstructor
@Builder
public class User {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;
    private String name;
    private String email;
    private String phone;
}

@Repository
public interface UserRepository extends JpaRepository<User, Long> {
    Optional<User> findByEmail(String email);
}

Service and Controller

@Service
@RequiredArgsConstructor
public class UserService {

    private final UserRepository userRepository;

    public List<User> getAllUsers() {
        return userRepository.findAll();
    }

    public User getUserById(Long id) {
        return userRepository.findById(id)
                .orElseThrow(() -> new RuntimeException("User not found"));
    }

    public User createUser(User user) {
        return userRepository.save(user);
    }
}

@RestController
@RequestMapping("/users")
@RequiredArgsConstructor
public class UserController {

    private final UserService userService;

    @GetMapping
    public List<User> getAllUsers() {
        return userService.getAllUsers();
    }

    @GetMapping("/{id}")
    public User getUserById(@PathVariable Long id) {
        return userService.getUserById(id);
    }

    @PostMapping
    public User createUser(@RequestBody User user) {
        return userService.createUser(user);
    }
}

Inter-Service Communication

Using OpenFeign

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>

@SpringBootApplication
@EnableFeignClients
public class OrderServiceApplication {
    public static void main(String[] args) {
        SpringApplication.run(OrderServiceApplication.class, args);
    }
}

// Feign Client
@FeignClient(name = "user-service")
public interface UserClient {

    @GetMapping("/users/{id}")
    UserDTO getUserById(@PathVariable Long id);
}

@FeignClient(name = "product-service")
public interface ProductClient {

    @GetMapping("/products/{id}")
    ProductDTO getProductById(@PathVariable Long id);
}

// Order Service using Feign clients
@Service
@RequiredArgsConstructor
public class OrderService {

    private final OrderRepository orderRepository;
    private final UserClient userClient;
    private final ProductClient productClient;

    public OrderResponse createOrder(OrderRequest request) {
        // Get user details
        UserDTO user = userClient.getUserById(request.getUserId());

        // Get product details
        ProductDTO product = productClient.getProductById(request.getProductId());

        // Create order
        Order order = Order.builder()
                .userId(user.getId())
                .productId(product.getId())
                .quantity(request.getQuantity())
                .totalAmount(product.getPrice() * request.getQuantity())
                .status("CREATED")
                .build();

        order = orderRepository.save(order);

        return OrderResponse.builder()
                .orderId(order.getId())
                .user(user)
                .product(product)
                .quantity(order.getQuantity())
                .totalAmount(order.getTotalAmount())
                .status(order.getStatus())
                .build();
    }
}

Circuit Breaker with Resilience4j

Handle failures gracefully:

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-circuitbreaker-resilience4j</artifactId>
</dependency>

@Service
@RequiredArgsConstructor
public class OrderService {

    private final UserClient userClient;

    @CircuitBreaker(name = "userService", fallbackMethod = "getUserFallback")
    @Retry(name = "userService")
    public UserDTO getUser(Long userId) {
        return userClient.getUserById(userId);
    }

    public UserDTO getUserFallback(Long userId, Exception e) {
        return UserDTO.builder()
                .id(userId)
                .name("Unknown User")
                .build();
    }
}

# application.yml
resilience4j:
  circuitbreaker:
    instances:
      userService:
        sliding-window-size: 10
        failure-rate-threshold: 50
        wait-duration-in-open-state: 10000
        permitted-number-of-calls-in-half-open-state: 3
  retry:
    instances:
      userService:
        max-attempts: 3
        wait-duration: 1s

Docker Deployment

Dockerfile

FROM eclipse-temurin:17-jre-alpine
WORKDIR /app
COPY target/*.jar app.jar
EXPOSE 8080
ENTRYPOINT ["java", "-jar", "app.jar"]

docker-compose.yml

version: '3.8'

services:
  config-server:
    build: ./config-server
    ports:
      - "8888:8888"
    networks:
      - microservices

  discovery-server:
    build: ./discovery-server
    ports:
      - "8761:8761"
    depends_on:
      - config-server
    networks:
      - microservices

  api-gateway:
    build: ./api-gateway
    ports:
      - "8080:8080"
    depends_on:
      - discovery-server
    environment:
      - EUREKA_CLIENT_SERVICEURL_DEFAULTZONE=http://discovery-server:8761/eureka/
    networks:
      - microservices

  user-service:
    build: ./user-service
    depends_on:
      - discovery-server
      - postgres
    environment:
      - EUREKA_CLIENT_SERVICEURL_DEFAULTZONE=http://discovery-server:8761/eureka/
      - SPRING_DATASOURCE_URL=jdbc:postgresql://postgres:5432/userdb
    networks:
      - microservices

  postgres:
    image: postgres:15-alpine
    environment:
      POSTGRES_DB: userdb
      POSTGRES_USER: postgres
      POSTGRES_PASSWORD: password
    volumes:
      - postgres_data:/var/lib/postgresql/data
    networks:
      - microservices

networks:
  microservices:
    driver: bridge

volumes:
  postgres_data:

Summary

Component	Purpose
Config Server	Centralized configuration
Discovery Server	Service registry
API Gateway	Single entry point, routing
Feign Client	Declarative REST client
Circuit Breaker	Fault tolerance

Microservices require careful planning but provide scalability and flexibility for large applications.
